This playbook will quarantine the host in Carbon Black.

Attribute Value
Type Playbook
Solution VMware Carbon Black Cloud
Source View on GitHub

Logic App Connectors

This playbook uses 2 Logic App connectors / built-in actions:

Connector / Action Type Connections Actions
azuresentinel Managed 1 3
CarbonBlackCloudConnector Custom 1 3
Action parameters (URLs, paths, function IDs)

azuresentinel (Managed)

Action Method Endpoint Other
Add_comment_to_incident_(V3) post /Incidents/Comment —
Update_incident put /Incidents —
Entities_-_Get_Hosts post /entities/host —

CarbonBlackCloudConnector (Custom)

Action Method Endpoint Other
Search_devices_in_your_organization_based_on_device_name post /appservices/v6/orgs/@{encodeURIComponent(variables('OrganizationKey'))}/devices/_search —
device_actions post /appservices/v6/orgs/@{encodeURIComponent(variables('OrganizationKey'))}/device_actions —
Search_devices_in_your_organization post /appservices/v6/orgs/@{encodeURIComponent(variables('OrganizationKey'))}/devices/_search —

Additional Documentation

📄 Source: CarbonBlack-QuarantineDevice/readme.md

CarbonBlack-QuarantineDevice Enrich Incident With devices information

Summary

When a new Sentinel incident is created,this playbook gets triggered and performs below actions

  1. Fetches the devices information from CarbonBlack

  2. Quarantine the device

  3. Enrich the incident with device information by fetching from CarbonBlack

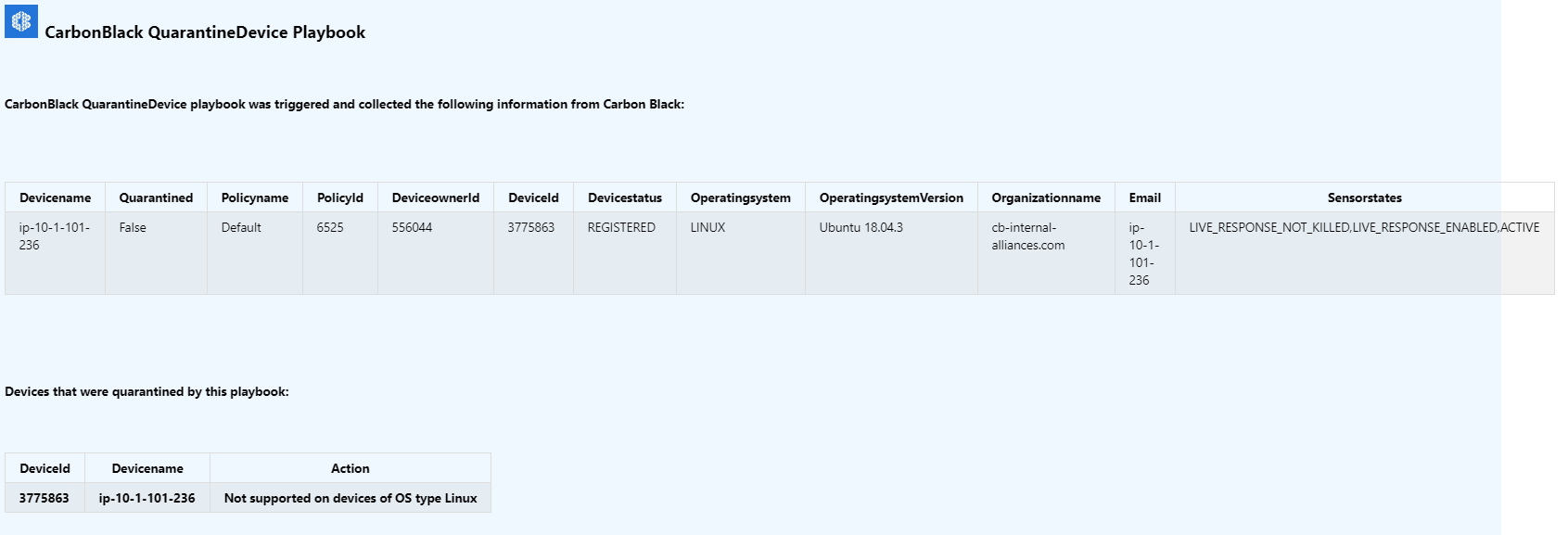

    CarbonBlack-Enrich Incident With devices information

    CarbonBlack-Enrich Incident With devices information

    CarbonBlack-Enrich Incident With devices information

Prerequisites

  1. CarbonBlack Custom Connector needs to be deployed prior to the deployment of this playbook under the same subscription.
  2. Generate an API key.Refer this link how to generate the API Key
  3. Find Organization key by referring this link Find Organization key by referring this link

Deployment instructions

  1. Deploy the playbook by clicking on "Deploy to Azure" button. This will take you to deploying an ARM Template wizard.
  2. Fill in the required parameters:
    • Playbook Name: Enter the playbook name here (Ex:CarbonBlack-QuarantineDevice)
    • OrganizationKey : Enter the Organization key

Post-Deployment instructions

Authorize connections

Once deployment is complete, you will need to authorize each connection.

  1. Click the Microsoft Sentinel connection resource
  2. Click edit API connection
  3. Click Authorize
  4. Sign in
  5. Click Save
  6. Repeat step 2&3 while for CarbonBlack connector Connection to authorize connector API of the playbook (For authorizing the CarbonBlack API connection, API Key needs to be provided. API Key Value is the combination of API Key / API ID)

Configurations in Sentinel

  1. In Microsoft sentinel analytical rules should be configured to trigger an incident with risky device
  2. Configure the automation rules to trigger this playbook

Deploy to Azure Deploy to Azure

Playbook steps explained

When Microsoft Sentinel incident creation rule is triggered

Microsoft Sentinel incident is created. The playbook receives the incident as the input.

Entities - Get Hosts

Get the list of risky devices as entities from the Incident

Initialize variable to assign the Organization Id

Initialize an string variable to assign the Organization Id provided by Client while deploying the playbook and used a parameter while calling the search devices with organization API action.

Initialize variable to assign the CarbonBlack devices information

Initialize an array variable to assign the CarbonBlack devices used as source to format the HTML with the devices information

Initialize variable to assign the quarantined devices information

Initialize an array variable to assign the quarantined devices information used as source to format the HTML with the action takened devices information

For each-Hosts

This action will perform the below actions a. Make a call to CarbonBlack API with the parameters such as Organization Key and Query [ Contains device name ] b. Verify the CarbonBlack returned the results and Check the device is quarantined c. If the device is not quarantined then isolate it.

Construct HTML table - CarbonBlack devices information

This action will construct the HTML table with devices information

Construct HTML table - Quarantined devices through playbook

This action will construct the HTML table with Quarantined devices through playbook

Add a comment to the incident with the information

This action will enrich the incident with the constructed HTML table with devices information

Close the comment

This action will close the incident if there is no exceptions occurred while quarantining the devices
